- Product Parameters: Fan voltage DC 12V, fan Power 38W, cooling capacity 2300kcal/h, flow rate 60L/min, working pressure ≤2.0MPa
- Structural Features: The oil passage is equipped with fins, which increases the heat dissipation area. The heat dissipation area of the outer fins is 1.3m², blowing rate 200m³/h
- High Heat Dissipation Efficiency: Cooling capacity of 2300kcal/h, achieving rapid heat dissipation
- Features: Made of superior-quality materials with low noise
- Reminder: When the cooler is used in the quantitative pump system circuit, a bypass unloading circuit must be installed to avoid excessive pulse pressure during system startup and damage to the radiator

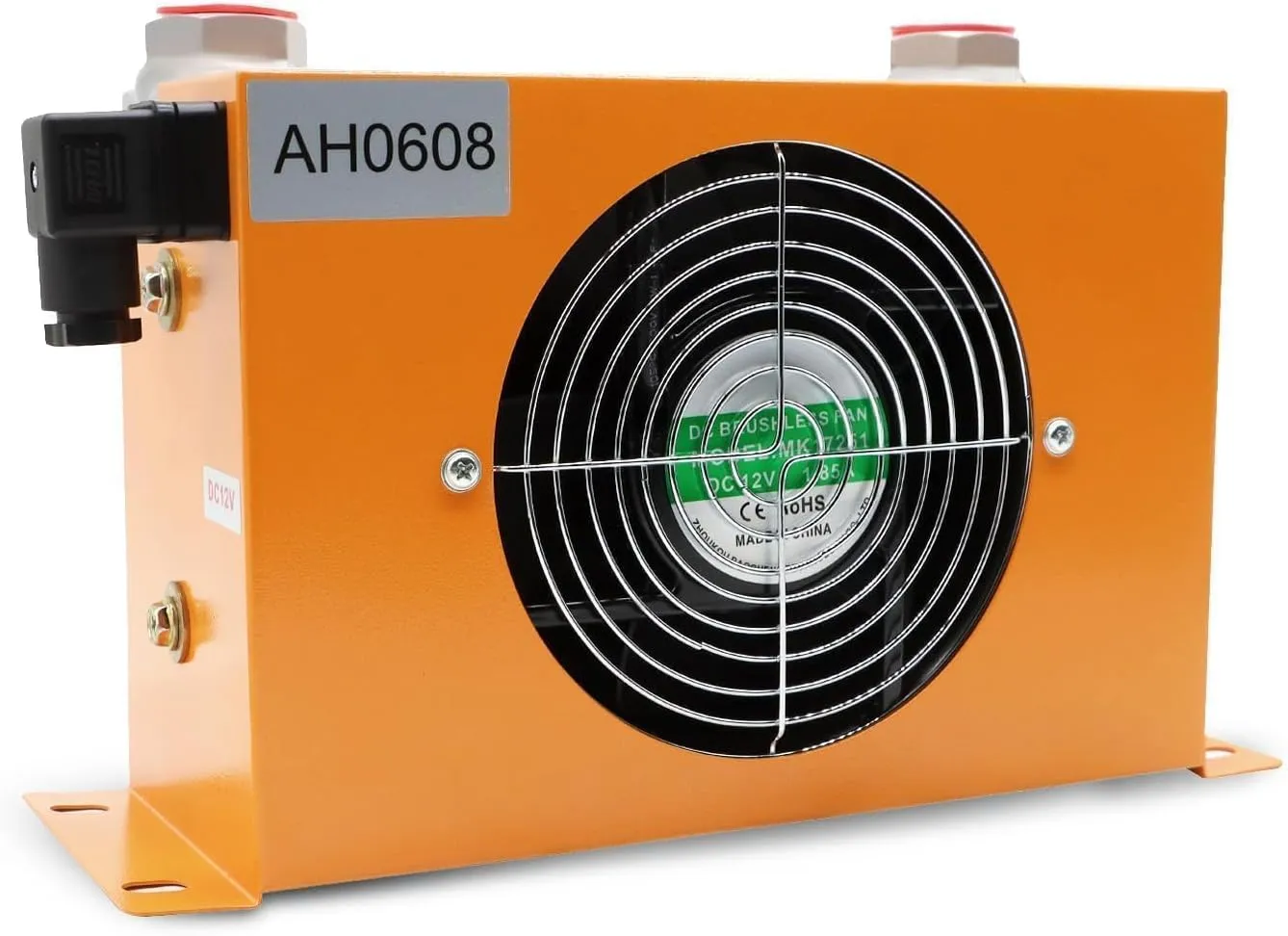

Replacement Code: AH0608T-CA
Fan Power: 38W
Fan Voltage: DC12V
Rate of Flow: 60L/min
Connection Thread: ZG3/4"
Cooling Capacity: 2300kcal/h
Outer Fin Heat Dissipation Area: 1.3m²
Working Pressure: ≤2.0MPa
Fan Diameter: 170MM
Feature description： Compact structure, with built-in fins in the heat dissipation tube, the heat dissipation area is larger, thus speeding up the heat dissipation efficiency. Can be used in: wave pressure system, lubrication system, gear box, transmission oil system. The mooring oil pressure system, vehicle oil pressure system, electric cooling oil system and other fluid cooling systems are easy to install and can be used for a long time. Note: The fan runs at high speed. To avoid damage, please do not remove the fan shield.
